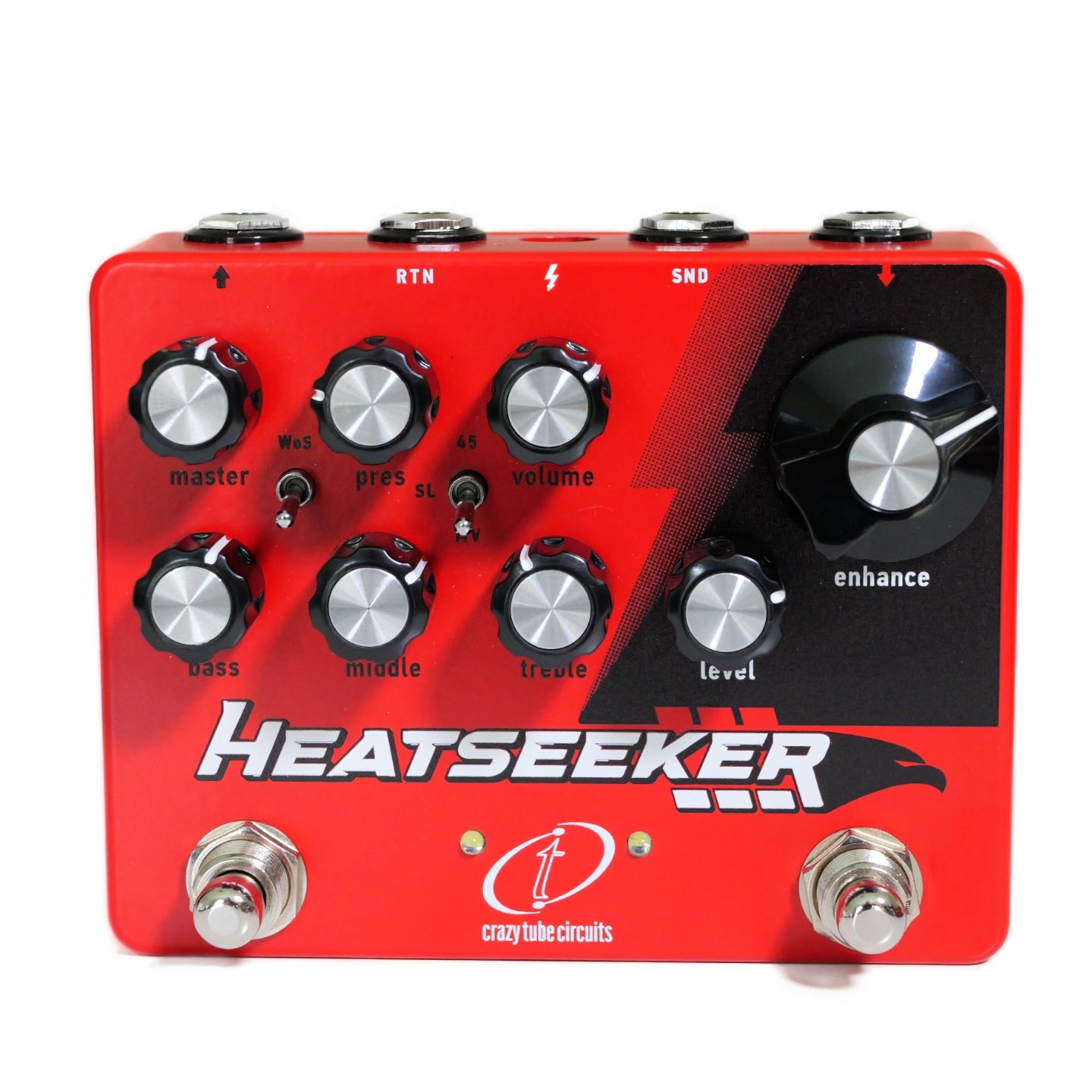

Crazy Tube Circuits – Marshall in a Box HeatSeeker Pedal

Description

Used for demo purposes only.

• Analogue preamp/enhancer and amp simulator
• Emulates the setup and sounds of Angus Young (AC/DC)
• Right hand side: Recreation of the preamp/enhancement section of the Schaffer Vega Funk system (Schaffer Vega Radio System)

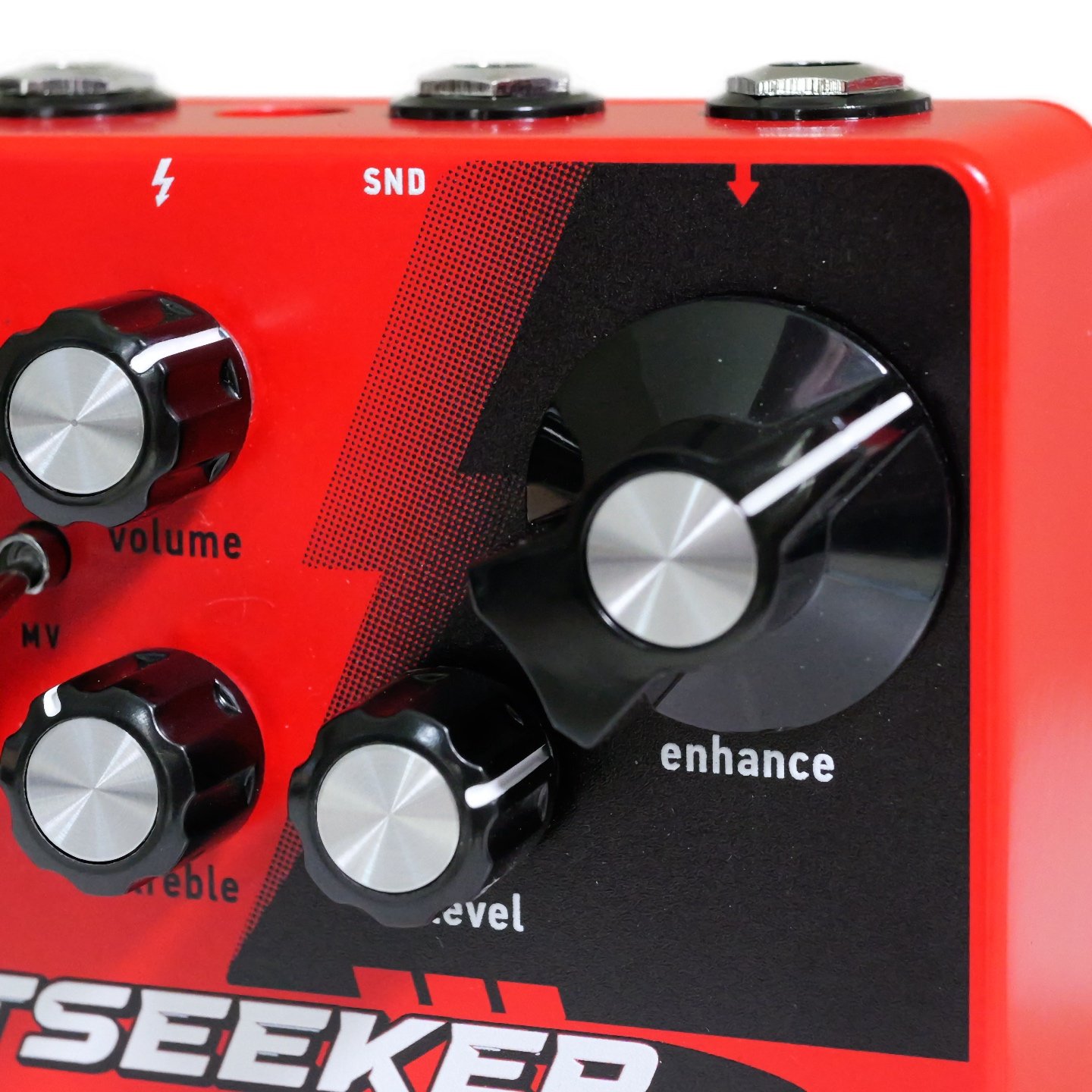

• Enhance control affects dynamics and harmonics
• Left hand side: Three analogue Marshall amp simulations (JTM45, 1959 Super Lead, JMP 2203)
• Master sets the pedal’s output level and provides more saturation at high settings
• Wall of Sound (WoS) toggle switch: emulates the sound of a wall of amps

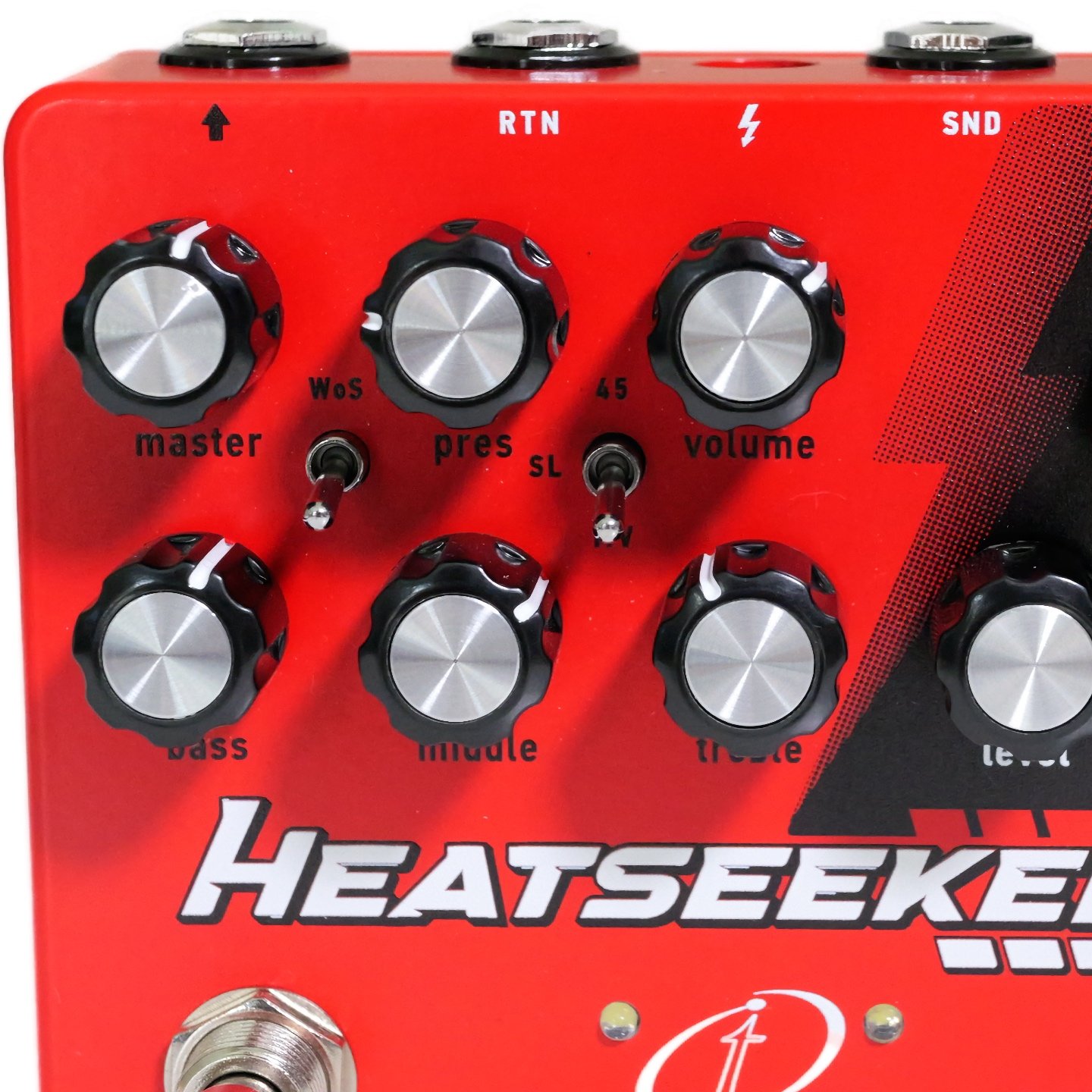

• Controls: Enhance, Level, Master, Pres, Volume, Bass, Middle, Treble
• Switches: WoS, Amp Voicing
• Relay-switched true click-less bypass for each section
• Amp and preamp sections can be used independently
• Passive serial effects loop for inserting pedals or for separate use as independent effects
• Power-up preset function: Switching state of the footswitches is saved when switching off

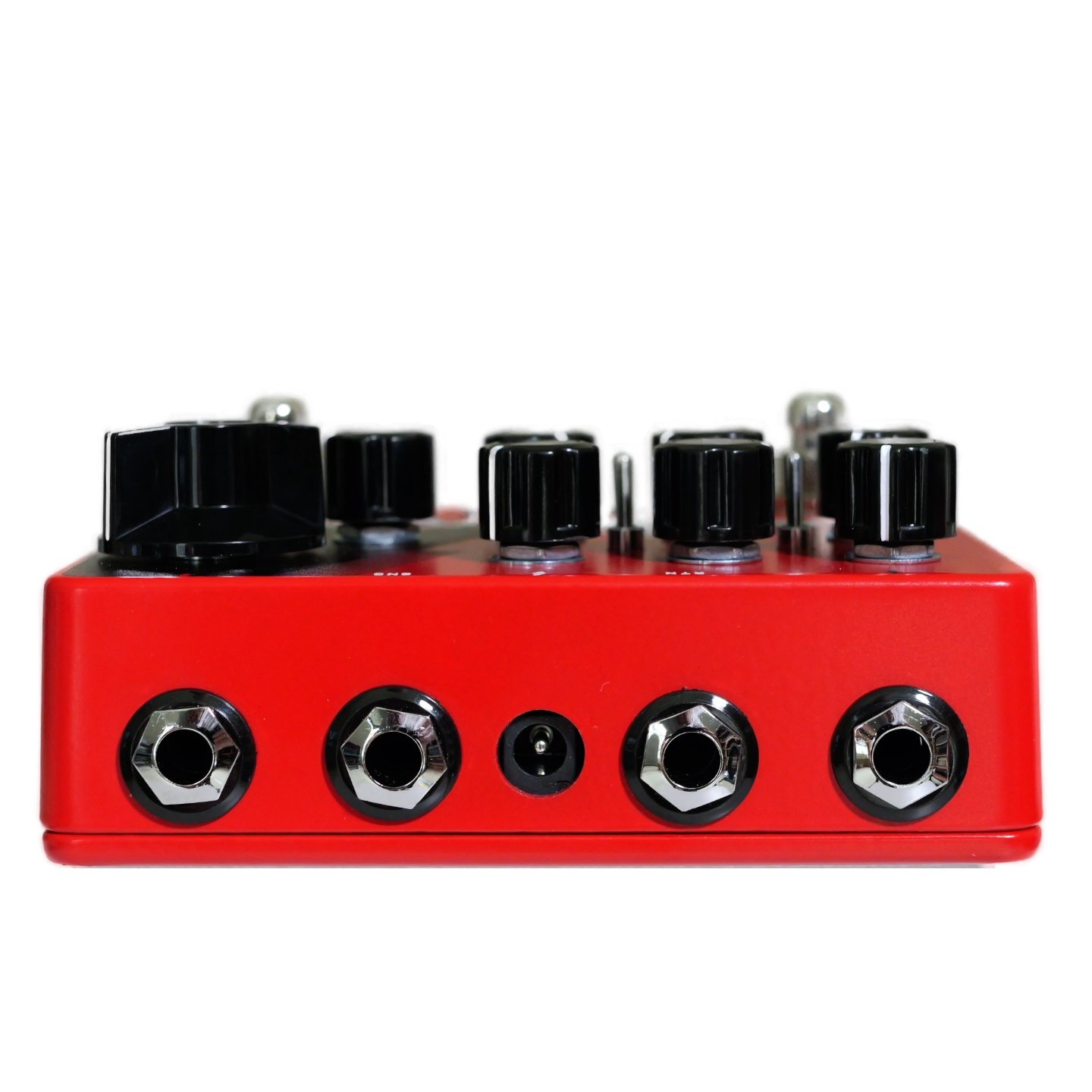

• Top-mounted connections
• Power supply: 9 V DC, 115 mA (not included)
• Internally operates at 27 V DC for increased headroom and tube-like performance
• Dimensions (W x D x H): 119 x 97 x 53 mm
